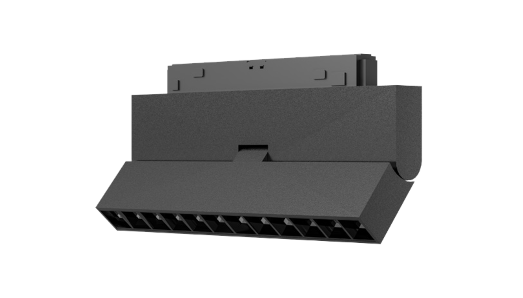

LOTO-AD LED 12W



Product description
Loto-AD is a linear lamp with adjustable light direction
and Lenses optical system.
Elegant and versatile, it creates different lighting
combinations when combined with other elements from
the same LOTO-LED series.
Multi-spot optical system.
Available in three different color temperatures:
2700K, 3000K, and 4000K.
Powered by a magnetic system, with a mechanical
hook designed with double safety.
48V safe supply voltage, flicker-free.
Aluminum body for excellent heat dissipation.
Two beam angles:
- 24°
- 40°
Characteristics
LOTO-AD LED 12W
Versions
LOTO-AD LED 12W
- Order code
- Input (V)
- Watt (W)
- C.C.T
- CRI
- Lumen
- UGR
- Function
- Beam angles

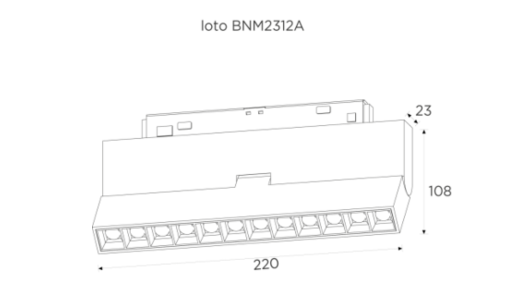

- Dimensions (mm)
- Protection grade
- Finishing
-
BNM2312AS-930
- 48V
- 12W
- 3000K
- 90
- 1104 lm
- 19
- On-off
- 24°
- 220x23x108
- IP40
- Black
-
BNM2312AM-930
- 48V
- 12W
- 3000K
- 90
- 1192 lm
- 19
- On-Off
- 40°
- 220x23x108
- IP40
- Black
-
BNM2312AS-940
- 48V
- 12W
- 4000K
- 90
- 1132.8 lm
- 19
- On-off
- 24°
- 220x23x108
- IP40
- Black
-
BNM2306AM-940
- 48V
- 12W
- 4000K
- 90
- 1223 lm
- 19
- On-off
- 40°
- 220x23x108
- IP40
- Black
