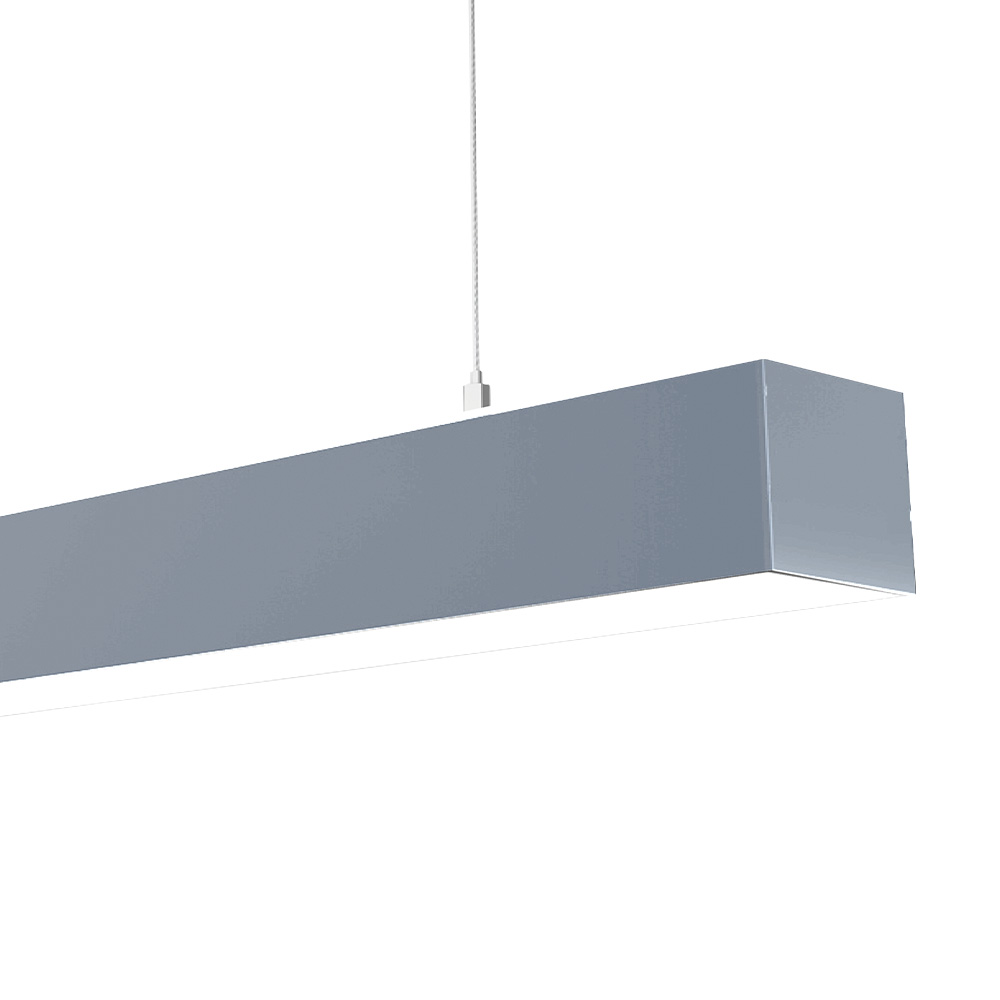

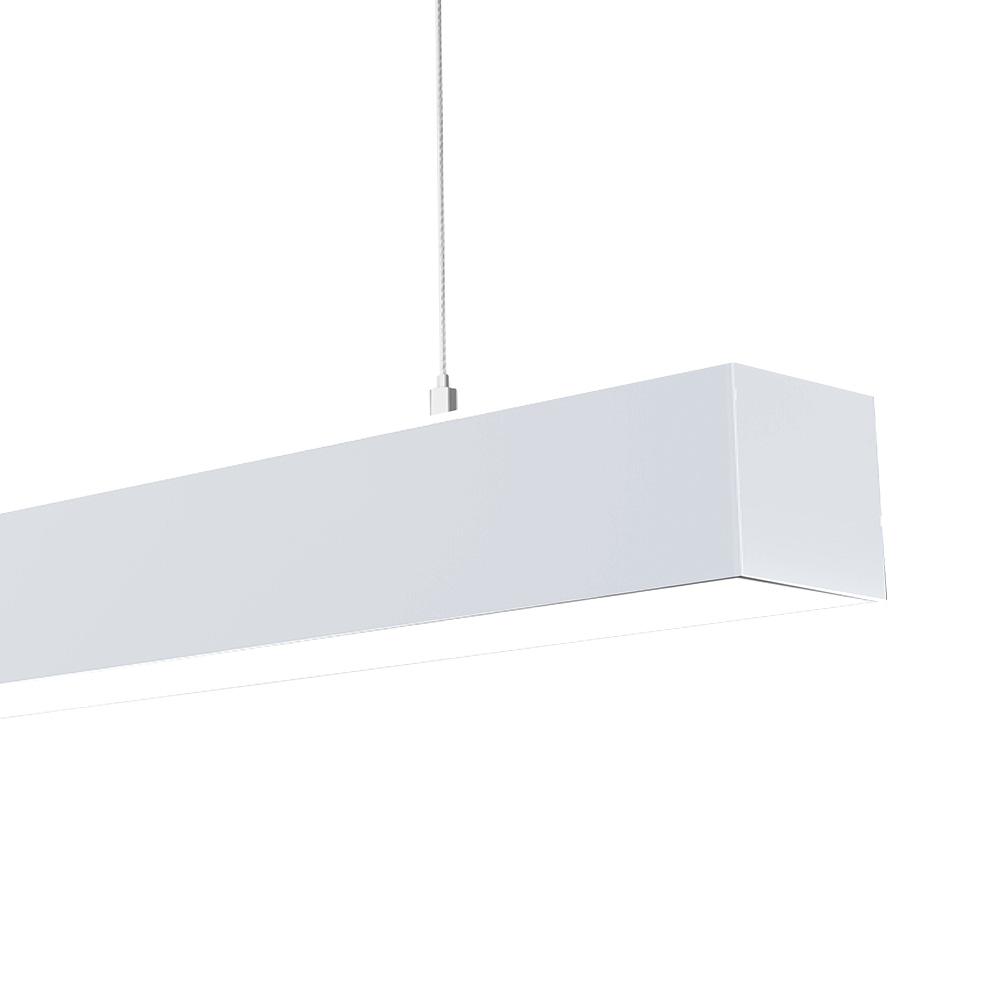

Natrix LED




Product description
Natrix is a tailor made lighting system.
The series is made up of a single module that works independently on lengths of one / two / three
meters or a modular system with modules of two meters that can be joined together up to a
maximum of 50 meters overall. Primolux provides all the optional accessories for correct installation
such as straight joints, 90° joints, kits for ceiling installation or hanging installation.
- Extruded aluminium body.
- UV-stabilized anti-age powder coating.
- IP44.
- IK07.
- Interchangeable optical system.
- Built-in driver.
- Flicker free.
- Item built in compliance with standards
EN 60598-1 and EN 60598-2-1.
LIGHT SOURCE
- SMD LED with high efficiency.
- 4000K standard (available on request: 3000K, 5700K.
- ErP 2019: F.
- Rated LED life:> 50000h L70.
INSTALLATION
- Ceiling, wall and hanging.
Characteristics
Natrix LED
Versions
Natrix LED 1
- Order code
- Input (V)
- Watt (W)
- CCT (K)
- Body Color
- Lumen
- Dimensions (mm)
- Optics
- Diffuser
- Protection grade
- LED Life
- Available color
-
ABL01H124B-840
- 230
- 24
- 4000
- Black
- 2120
- 1000
- Interchangeable
- Micro-Prismatic
- IP44
- 50000h
- White (W) Silver (S)
-
ABL01H124S-840
- 230
- 24
- 4000
- Silver
- 2120
- 1000
- Interchangeable
- Micro-Prismatic
- IP44
- 50000h
- Black (B) White (W)
-
ABL01H124S-840
- 230
- 24
- 4000
- White
- 2120
- 1000
- Interchangeable
- Micro-Prismatic
- IP44
- 50000h
- Black (B) Silver (S)
Natrix LED 2
- Order code
- Input (V)
- Watt (W)
- CCT (K)
- Body Color
- Lumen
- Dimensions(mm)
- Optics
- Diffuser
- Protection grade
- LED Life
- Available color
-
ABL01H248B-840
- 230
- 48
- 4000
- Black
- 4240
- 2000
- Interchangeable
- Micro-Prismatic
- IP44
- 50000h
- White (W) Silver (S)
-
ABL01H248S-840
- 230
- 48
- 4000
- Silver
- 4240
- 2000
- Interchangeable
- Micro-Prismatic
- IP44
- 50000h
- Black (B) White (W)
-
ABL01H248S-840
- 230
- 48
- 4000
- Bianco
- 4240
- 2000
- Interchangeable
- Micro-Prismatic
- IP44
- 50000h
- Black (B) Silver (S)
Natrix LED 3
- Order code
- Input (V)
- Watt (W)
- CCT (K)
- Body Color
- Lumen
- Dimensions(mm)
- Optics
- Diffuser
- Protection grade
- LED Life
- Available color
-
ABL01H372B-840
- 230
- 72
- 4000
- Black
- 6355
- 3000
- Interchangeable
- Micro-Prismatic
- IP44
- 50000h
- White (W) Silver (S)
-
ABL01H272S-840
- 230
- 72
- 4000
- Silver
- 6355
- 3000
- Interchangeable
- Micro-Prismatic
- IP44
- 50000h
- Black (B) White (W)
-
ABL01H272S-840
- 230
- 72
- 400
- White
- 6355
- 3000
- Interchangeable
- Micro-Prismatic
- IP44
- 50000h
- Black (B) Silver (S)
